LK24 Series


Single Taper coupling(Single Spring Plate)


*Coupling with taper coupling.

*High rigidity,large transmission torque.

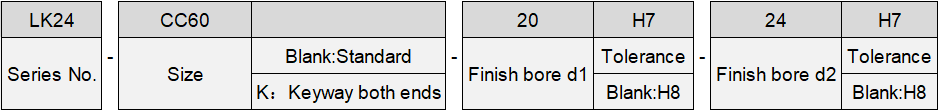

Order Information

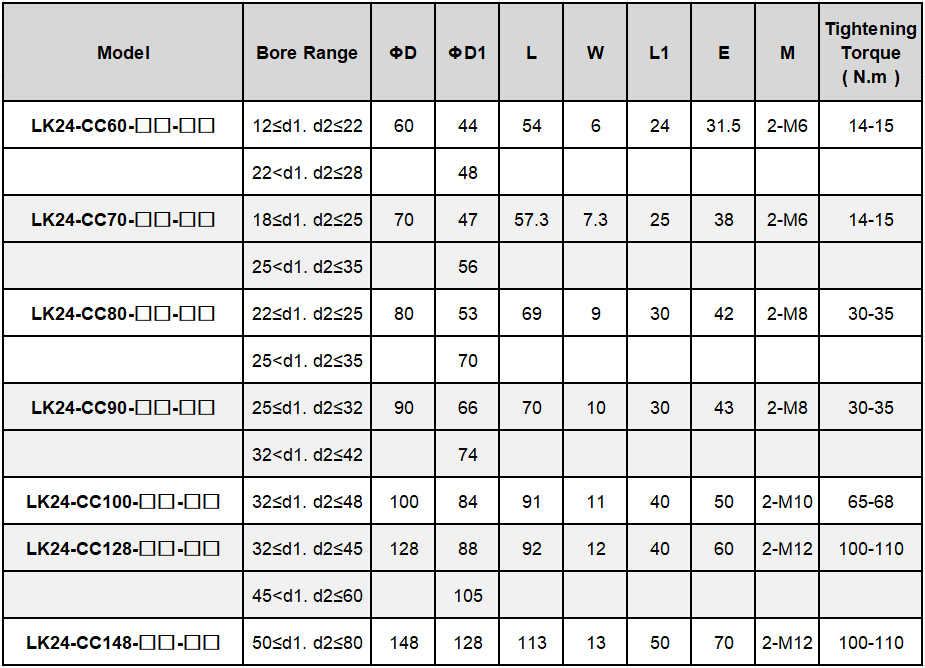

Dimensions(mm)

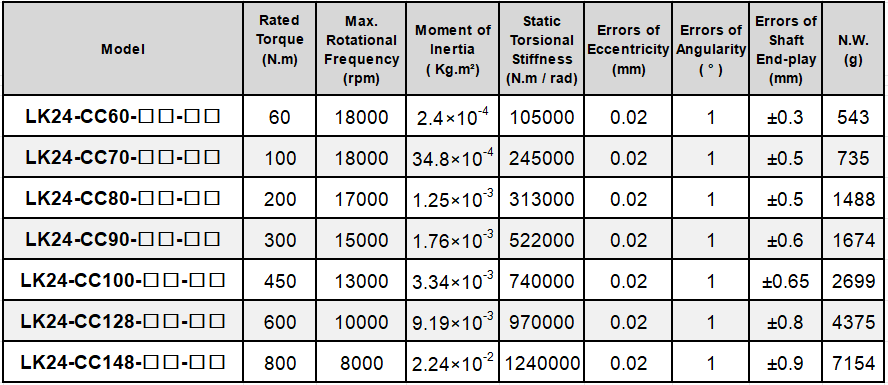

Specifications(mm)


Downloads


Here you will find order examples and operating instructions for download in PDF format.

LK24 Tapered Shaft Type Disc Coupling (Single Spring Plate).pdf
