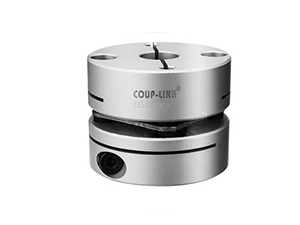

LK11 Series


Keyway Disc Coupling (Single disc)


* Using keyway connect, plate springs coupling.
* Zero backlash.
* Excellent response and high torque capacity.
* Identical clockwise and anticlockwise rotational characteristics.
* Stainless steel plate springs absorb parallel, angular misalignments and shaft end-play.

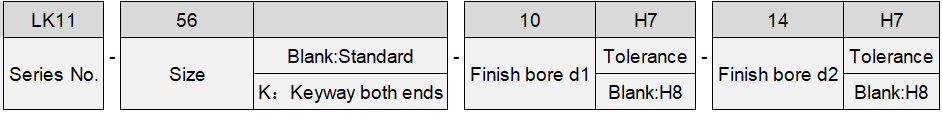

Ordering Information

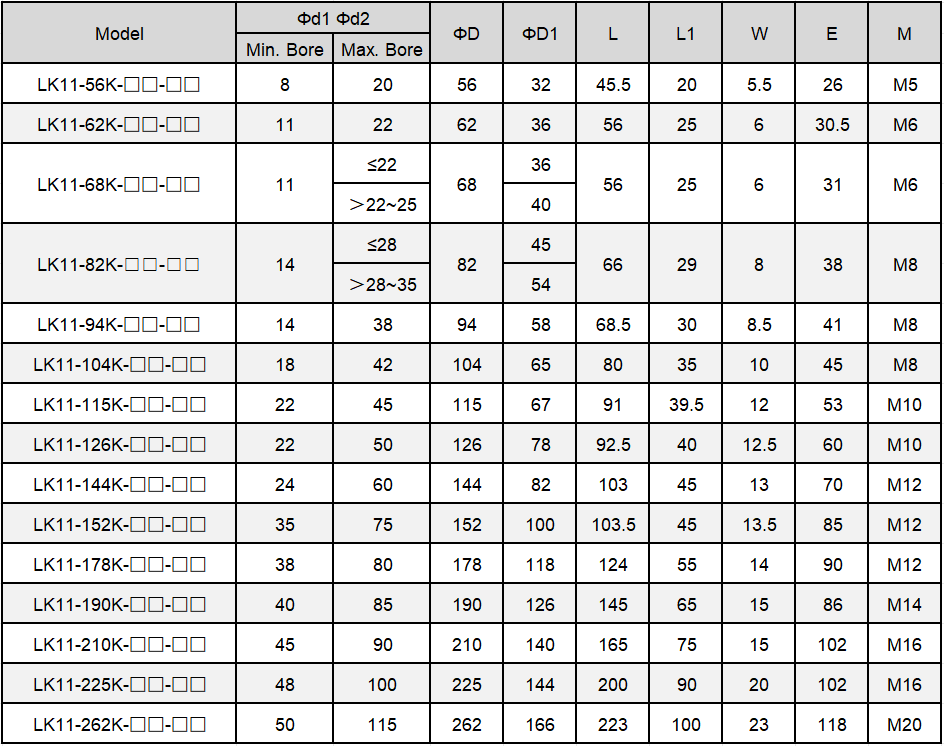

Dimensions(mm)

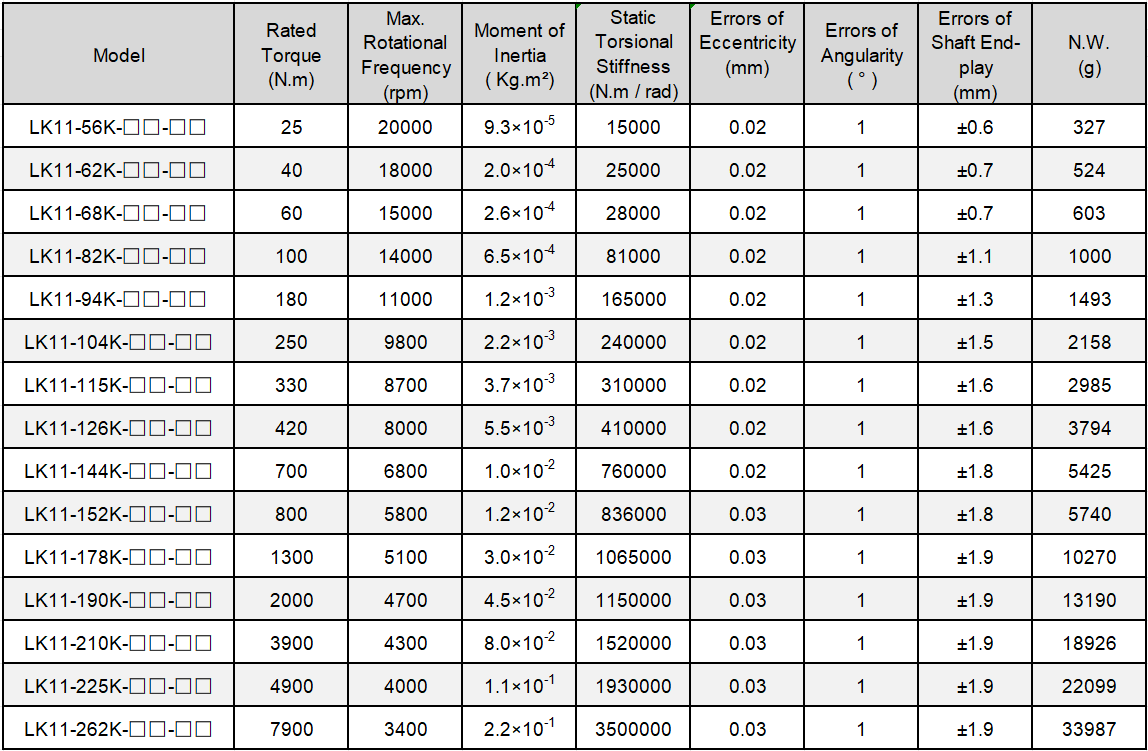

Specifications(mm)


Downloads


Here you will find order examples and operating instructions for download in PDF format.

LK11 Keyway Disc Coupling (Single Spring Plate).pdf
